2020 GMC Sierra 1500 Brake System Control Module: Diagnostics & Replacement

The brake system control module is a critical component in the 2020 GMC Sierra 1500. Additionally understood as the ABS control module, it oversees the anti-lock braking system to assure reliable braking performance, particularly in adverse road conditions. Malfunctions in this module might result in a variety of braking problems that risk vehicle safety. Let’s take a closer look at diagnosing and replacing the brake system control module in the 2020 Sierra 1500.

Common Symptoms of a Failing Brake System Control Module

A faulty brake system control module in the 2020 GMC Sierra 1500 can manifest in several ways:

• The dashboard has the ABS warning light lit up.
• When the brakes are applied, they give off abnormal pulses or vibrations.
• Braking distance is increased
• The brakes either catch or lock up without warning.
• DTCs tied to the ABS are currently stored

If you find any of these symptoms in your 2020 Sierra 1500, prompt diagnosis of the problem is crucial. Ignoring a malfunctioning brake system control module can lead to unpredictable braking behavior and potential accidents.

Diagnosing the Brake System Control Module

Before replacing the brake system control module, it’s crucial to perform proper diagnostics to confirm it is indeed the root cause. Here are some steps to diagnose the module:

• Look for DTCs employing an OBD-II scanner. Be aware of codes including C05D4 (Brake Master Cylinder Piston Position Sensor Calibration Not Learned) and P0602 (Control Module Programming Error).
• Visually inspect the brake system control module and its wiring harness for signs of damage, corrosion, or loose connections.
• Test the electronic module’s ability and ground supplies with the aid of a digital multimeter.
• Carry out a hydraulic test for the purpose of measuring pressure loss. Should the test not succeed or become aborted, that might represent a challenge with the control module.
• Effort to adjust the brake master cylinder piston position sensor by using a scan tool. Should the module face repeated calibration failures, it is likely that it is faulty.
• In some cases, brake system control module issues can be caused by outdated software. Ensure that no updates are available for the module and reflash it if that is necessary.

Replacing the Brake System Control Module

If diagnostics confirm a faulty brake system control module, replacement is typically necessary. Here are the general steps involved:

• Damage not avoidable, bullet train continues to roll.
• Locate the brake system control module, which is usually mounted near the brake master cylinder or inside the engine compartment.
• Unplug the electrical connector of the module and remove all mounting bolts.
• Connect the electrical connector solidly and fit the new control module.
• Replace the link between the negative battery cable.
• Do any needed calibrations or relearns using a scan tool in accordance with the instructions from the manufacturer. This may comprise the brake master cylinder piston position sensor calibration.
• Check the vehicle’s road performance to ensure its braking works accurately and that no warning signals are illuminated.

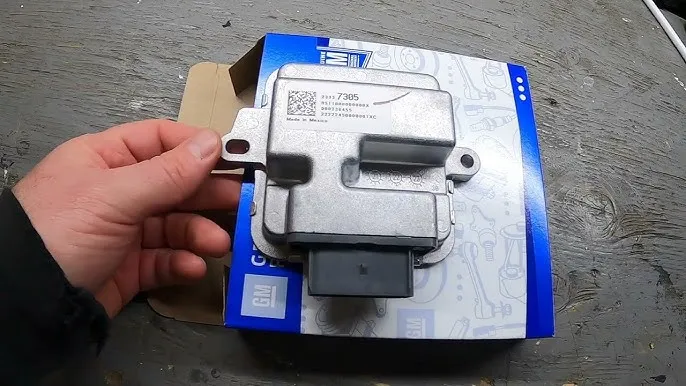

When purchasing a replacement brake system control module for your 2020 GMC Sierra 1500, it’s recommended to use an OEM unit (such as GM part number 84634366) for optimal compatibility and performance. Aftermarket modules do not necessarily function reliably.

Tips for Avoiding Brake System Control Module Failure

While brake system control modules are designed to be durable, there are some steps you can take to help prevent premature failure:

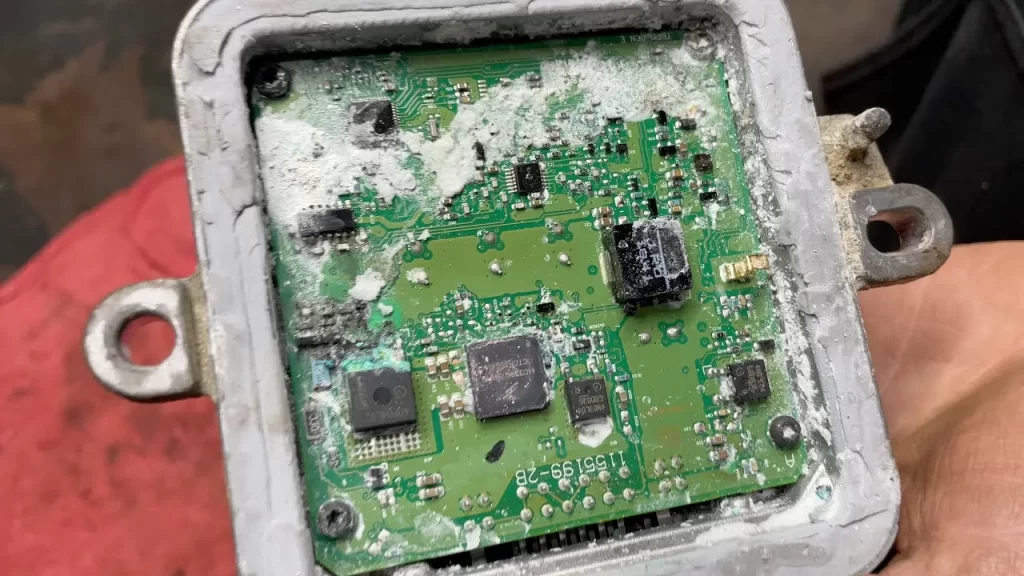

• Keep the module and its connectors free of corrosion and in clean condition. Check and clean every so often as needed.
• Do not allow the module to come into contact with extensive moisture or water ingress.
• Keep the brake fluid level at its proper level and change the fluid according to the guidelines from the manufacturer.
• Respond rapidly to any brake system problems to avoid unwanted stress on the control module.
• When performing repairs or upgrades, stick to only the best brake components.
• By following these tips and staying on top of brake system maintenance, you can help extend the life of your 2020 GMC Sierra 1500’s brake system control module.

Final Thought

The brake system control module plays a vital role in the safe and proper functioning of the 2020 GMC Sierra 1500’s brakes. When you think there may be a problem with this component, it is necessary to thoroughly investigate it using codes, visual checks, and tests. It becomes necessary in many cases to exchange the module to return braking operation to normal.

Be sure to use OEM parts to secure the best results and strictly follow the manufacturer’s calibration procedures following installation. By promptly addressing any brake system control module issues, you can help ensure your 2020 Sierra 1500 maintains its braking performance and keeps you safe on the road.
