Service Trailer Brake System on GMC: Causes and Fixes

"Service Trailer Brake System" means the truck's Integrated Trailer Brake Control (ITBC) has detected a fault in its own system, and the factory trailer brake controller may be working only partly or not at all. GM's owner's manual says that if the message keeps coming back over multiple ignition cycles, the vehicle needs service. Before that, a few quick checks at the connector and in the truck's other brake systems solve or narrow down many cases.

It is a different message from "Check Trailer Wiring", which points to a disconnected harness or an electrical fault in the wiring to the trailer brakes. Knowing which one you have tells you where to start.

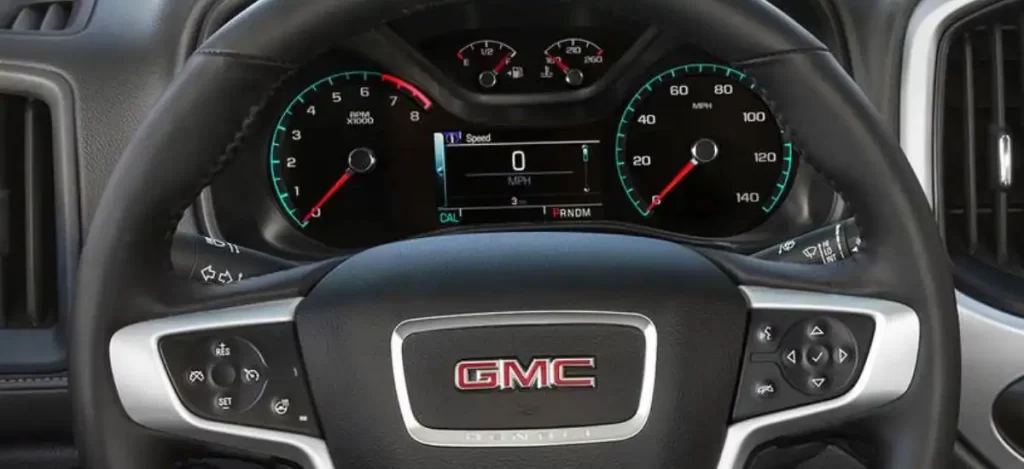

Service Trailer Brake System message on a GMC

What the ITBC System Does

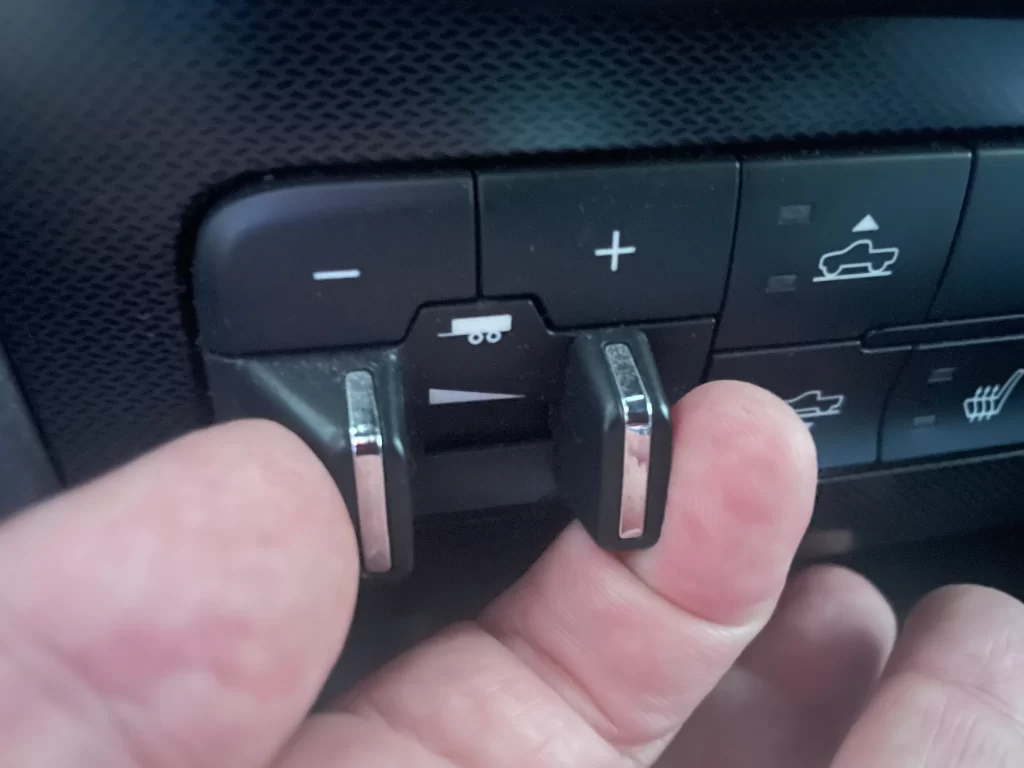

Sierra, Sierra HD, and Yukon models with the factory trailering package can have an ITBC system. It is built into the truck, with a control panel on the center stack that has three parts:

Manual Trailer Brake Apply lever: slide it to apply the trailer's electric brakes on their own, without the truck's brakes.
Trailer symbol: lights amber when a trailer with electric brakes is connected.
Trailer Gain (+) and (-) buttons: set how much power goes to the trailer brakes, from 0.0 to 10.0.

GM describes the system as integrated with the truck's brakes, antilock brakes, and StabiliTrak/ESC. Output to the trailer is proportional to how hard the truck is braking. The system is designed for electric trailer brakes and most electric-over-hydraulic setups. GM warns against connecting a trailer with air brakes to it.

For setup and daily use, see how to use the 2024 Sierra 1500 brake controller and our guide to GMC trailer brake gain settings for 1500 vs. 2500.

Service Trailer Brake System vs. Other Trailer Messages

DIC message or display	What GM says it means	Where to look first
TRAILER CONNECTED	Shown for about 10 seconds when a trailer with electric brakes is first connected	Normal, no action
CHECK TRAILER WIRING	A trailer with electric brakes was disconnected, or there is an electrical fault in the wiring to the trailer brakes	Plug, pins, trailer harness
SERVICE TRAILER BRAKE SYSTEM	A fault in the ITBC system itself	Restart test, other brake warnings, then a dealer scan
Trailer Output shows "- - - - - -"	No trailer connected, or a trailer without electric brakes is connected (no DIC message in that case)	Confirm the trailer actually has electric brakes

Source for the table: GM's 2018 and 2020 Sierra owner's manuals, which use the same wording for these messages.

Why the Message Appears

GM's manual does not break the message down into specific causes. It says only that there is a problem with the ITBC system. In practice, the fault falls into one of these groups, and each one leads to a different check:

A fault in a system ITBC depends on. GM states that if the truck's brake, ABS, or StabiliTrak/ESC systems are not working properly, ITBC may not work fully or at all. If an ABS, brake, or StabiliTrak warning is on at the same time, fix that first. A wheel speed sensor or brake module fault can take the trailer brake controller down with it.
Electrical supply to the controller. ITBC runs off the truck's electrical system and only works with the ignition on. A weak battery, a poor ground, or a blown trailer brake fuse can cause faults. Fuse locations vary by year and cab, so check the fuse chart in your owner's manual or on the fuse box lid.
Connector and harness problems that start as wiring faults. Corroded or bent pins in the truck's 7-way socket, or a chafed brake output wire, often show up first as Check Trailer Wiring but can leave codes stored in the controller.
The controller or its software. If the message persists with a known good trailer, clean connections, and no other brake warnings, the problem is likely the trailer brake module or its calibration. A dealer or shop with a GM-capable scan tool can read the stored codes. GM recall 21V-579 (a small number of 2021 Yukon and Tahoe vehicles) involved brake system calibrations done by dealer technicians that affected braking while towing. It is a reminder that a recent brake module programming job belongs in the history you give the shop.

Check It in This Order

Do these steps in order. Each one rules out a whole group of causes.

Pull over when it is safe and restart. GM's own advice: if Check Trailer Wiring or Service Trailer Brake System appears while driving, pull over, turn the ignition off, check the trailer wiring connection, and turn the ignition back on. If the message goes away and does not come back over the next few drives, it was likely a momentary fault.
Look for other brake warnings. ABS, brake system, or StabiliTrak lights on at the same time point to the truck's brake system, not the trailer controller. See our GMC brake warning light and message chart.
Find out which side the fault is on. GM gives this test for wiring faults: unplug the trailer harness, turn the ignition off, wait 10 seconds, and turn it back on. If Check Trailer Wiring comes back with nothing plugged in, the fault is on the truck side. If it only comes back when you plug the trailer in, the fault is on the trailer side.

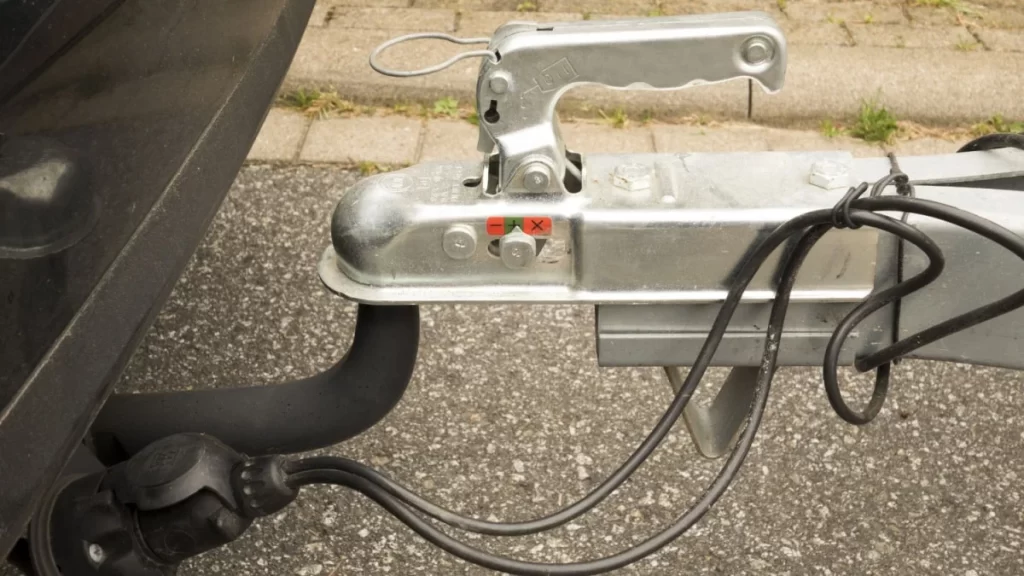

Inspect the 7-way socket and plug. Look for green corrosion, pushed-back or spread terminals, and water inside. Clean with electrical contact cleaner, let it dry, and use a thin coat of dielectric grease on the seal and the plug body, not packed into the contacts. On GM trucks, the electric trailer brake circuit is the blue wire in the trailer harness. Our GMC trailer brake controller wiring guide covers the pinout and test points.

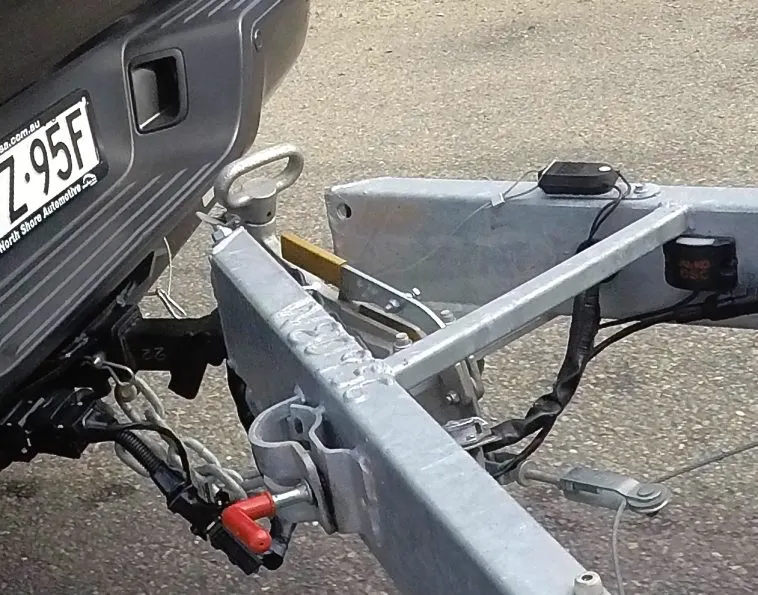

Check the trailer itself. Broken magnet wires, a bad trailer ground, or a damaged breakaway switch can all cause faults. Testing with a different trailer that is known to be good is the fastest way to find out.
Check battery condition and the trailer brake fuse. Low voltage causes odd module behavior. Replace a blown fuse only once. If it blows again, there is a short to find.
Have the codes read. If the message stays after all of the above, a scan tool that can talk to the trailer brake and brake control modules will show whether the fault is internal, in the supply, or in the output circuit.

If you have a Yukon, the Yukon trailer brake troubleshooting guide covers model-specific checks. If you need to tow without the factory controller for a while, see how to turn off the trailer brake system on a Sierra.

Can You Keep Towing?

GM's manual says that with either Check Trailer Wiring or Service Trailer Brake System showing, the ITBC system "may not be fully functional or may not function at all." That means the trailer's brakes may not be doing their share, and the truck's brakes will carry more of the load. Stopping distances get longer and the trailer can push the truck. Many US states require working trailer brakes above certain trailer weights, so check the rules where you tow before driving on with the fault.

If you have to move the rig a short distance, test the trailer brakes first at walking pace in an empty lot with the Manual Trailer Brake Apply lever. Watch the Trailer Output reading on the DIC trailer brake page. If the output reads zero or dashes with a trailer that has electric brakes connected, the trailer is not getting brake power.

After the Repair: Reset Trailer Gain

Once the fault is fixed, set the gain again the way GM describes: on a level, dry road with no traffic, at about 20-25 mph, fully apply the Manual Trailer Brake Apply lever and adjust gain to just below the point where the trailer wheels lock. With a heavy trailer where lock-up does not happen, use the highest gain that suits the conditions. GM notes that setting gain below 20-25 mph can give a wrong setting, and that it should be reset whenever the truck's load, the trailer's load, or the road surface changes.

Frequently Asked Questions

What is the difference between "Check Trailer Wiring" and "Service Trailer Brake System"?

Check Trailer Wiring means a trailer with electric brakes was disconnected, or there is an electrical fault in the wiring to the trailer brakes. Service Trailer Brake System means the ITBC system itself has a problem. Wiring faults are often found at the plug. A Service Trailer Brake System message that keeps coming back usually needs a scan tool.

Can this message appear with no trailer connected?

Yes. Because it reports a fault in the truck's own controller, it can show up without a trailer plugged in. A fault in the truck's ABS or StabiliTrak system can also keep ITBC from working, so look for other warning lights.

Will clearing the message fix it?

Acknowledging the message only hides it. GM says that if it continues over multiple ignition cycles, the vehicle needs service. Clearing codes without fixing the cause just means the message will come back.

Does ITBC work with surge brakes or air brakes?

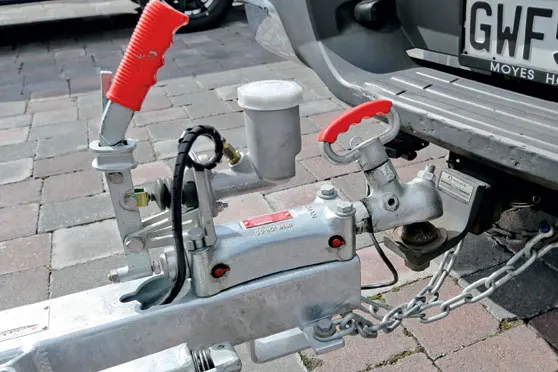

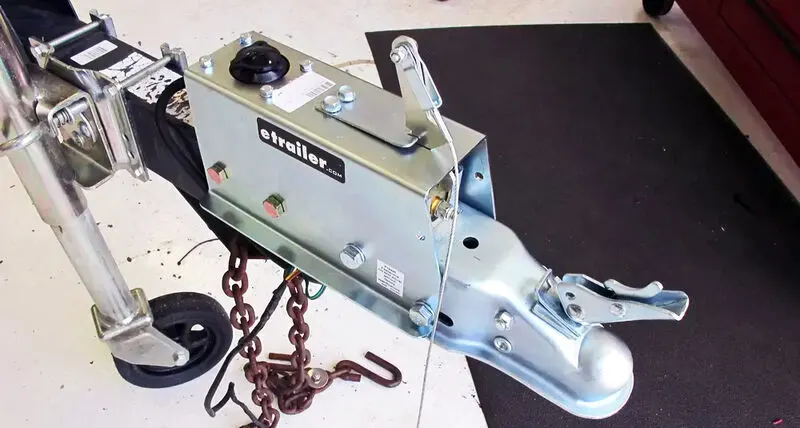

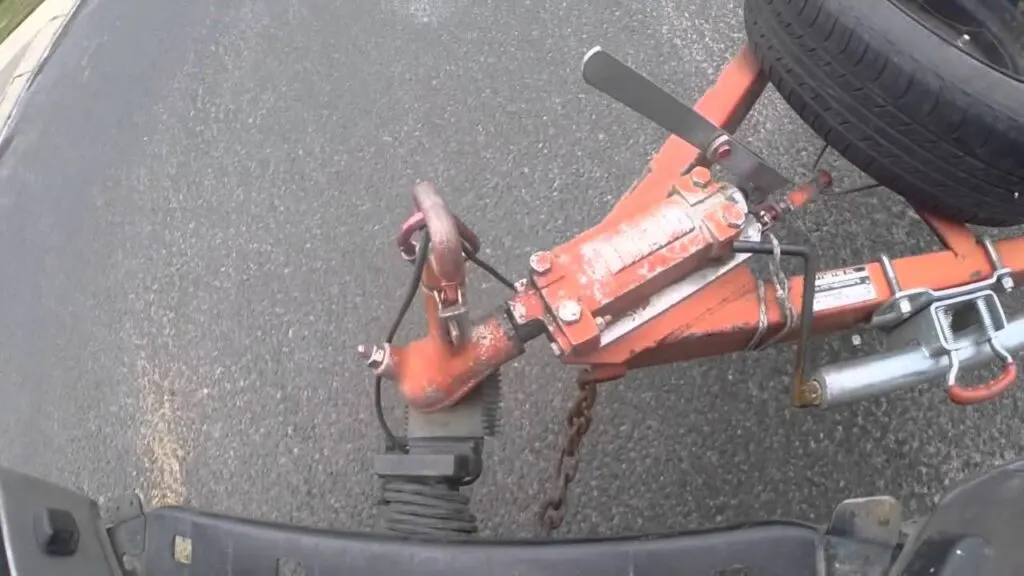

GM says ITBC is for electric trailer brakes and most electric-over-hydraulic systems, and warns that connecting a trailer with air brakes can cause reduced or complete loss of trailer braking. Surge brakes are hydraulic and triggered by the trailer itself, so they do not use the controller's brake output.

Is the repair covered by warranty?

On a truck still within GM's factory coverage, a trailer brake module fault is normally handled as a warranty repair, but coverage depends on your warranty terms, mileage, and whether the fault is on the truck or the trailer. Trailer wiring and trailer brake parts are not covered by the truck's warranty.
