GMC Acadia Parking Brake Service Mode (2017-2023)

To service the rear brakes on a 2017-2023 GMC Acadia, the electric parking brake (EPB) has to be put into service mode so the actuator motors on the rear calipers back off before you push the pistons in. The dependable way is a scan tool that can command the EPB "service" or "release for maintenance" function; a switch-and-pedal sequence without a tool is widely shared, but it is not in the owner's manual and does not work on every vehicle. First-generation Acadias (2007-2016) use a foot-operated parking brake and have no service mode at all.

Which Acadia Years Have an Electric Parking Brake

Check which system your Acadia has before you buy a tool or look up a procedure. The table only lists what the owner's manuals confirm.

Model years	Parking brake type	Service mode needed?	Confirmed from
2007-2016 (first generation)	Foot-operated parking brake pedal	No	2016 Acadia owner's manual
2017-2023 (second generation)	Electric Parking Brake (switch on the console)	Yes, for rear pad or caliper work	2017 and 2022 Acadia owner's manuals
2024 and newer (third generation)	Check your manual	Verify before you start	Owner's manual (from GMC's manuals and guides page) or GM service information for your VIN

This guide covers the 2017-2023 vehicles. The 2018 and 2019 models, which owners search for most, fall inside that range. For older pedal-type systems and general parking brake care across the lineup, see our GMC parking brake guide.

Why the Rear Pistons Won't Just Push Back

On a conventional caliper you compress the piston with a spreader tool and slide in new pads. On the second-generation Acadia the parking brake is applied by an electric actuator attached to each rear caliper. The actuator drives a mechanism behind the piston, so the piston cannot travel back into its bore until the actuator has retracted.

Forcing the piston while the actuator is holding it can damage the actuator, the internal mechanism or the piston seal. Service mode (sometimes called "maintenance mode" or "release for service" on scan tools) tells the brake module to run the actuators fully back and hold them there while you work.

What the Owner's Manual Says About the EPB

The 2022 GMC Acadia owner's manual covers normal use of the EPB, not service mode. A few points from it matter for a brake job:

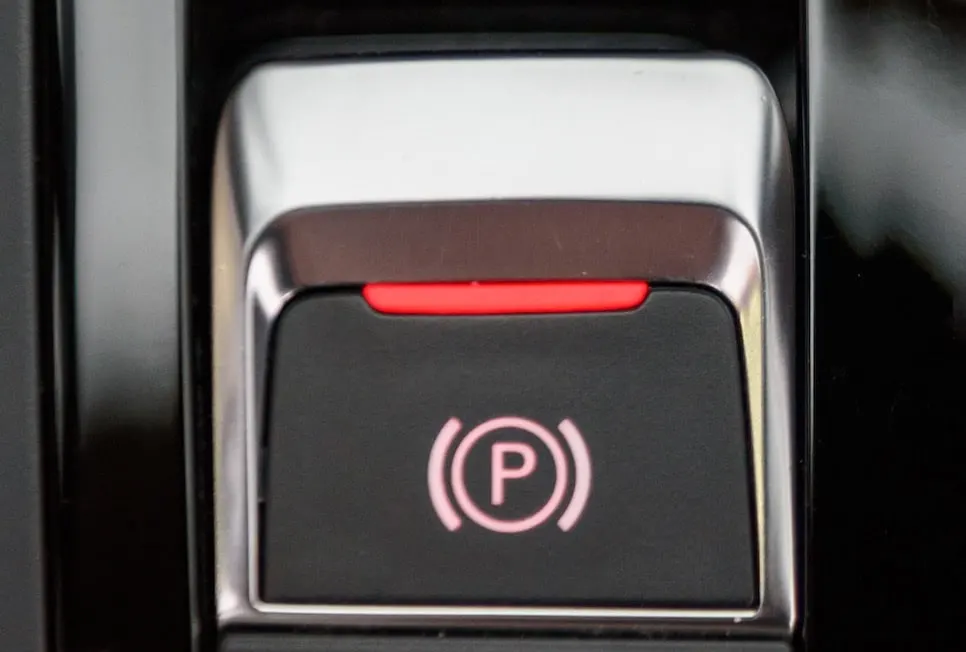

• Releasing the EPB: turn the ignition on or to ACC/ACCESSORY, apply and hold the brake pedal, then press the EPB switch momentarily. The brake is released when the red parking brake light goes out.
• Power: the EPB cannot be applied or released without enough electrical power. A weak battery can make the system look faulty.
• Automatic applies: the vehicle may apply the EPB on its own when stationary to check the system, and it may apply it automatically if you shift into Park on a hill. Keep this in mind with the wheels off.
• Repeated cycling: GM advises against unnecessary repeated apply and release cycles to avoid draining the battery.

Releasing the EPB this way only takes the brake off. It does not retract the actuators far enough to accept new, thicker pads. That is what service mode is for.

Warning Lights and What They Mean

Indicator	What the owner's manual says it means
Red parking brake light, steady	EPB is applied
Red parking brake light, flashing	EPB is only partly applied or has a problem; do not drive, release and reapply, see a dealer if it keeps flashing
Amber service parking brake light	Fault in the EPB system; other safety functions that use the EPB may be degraded

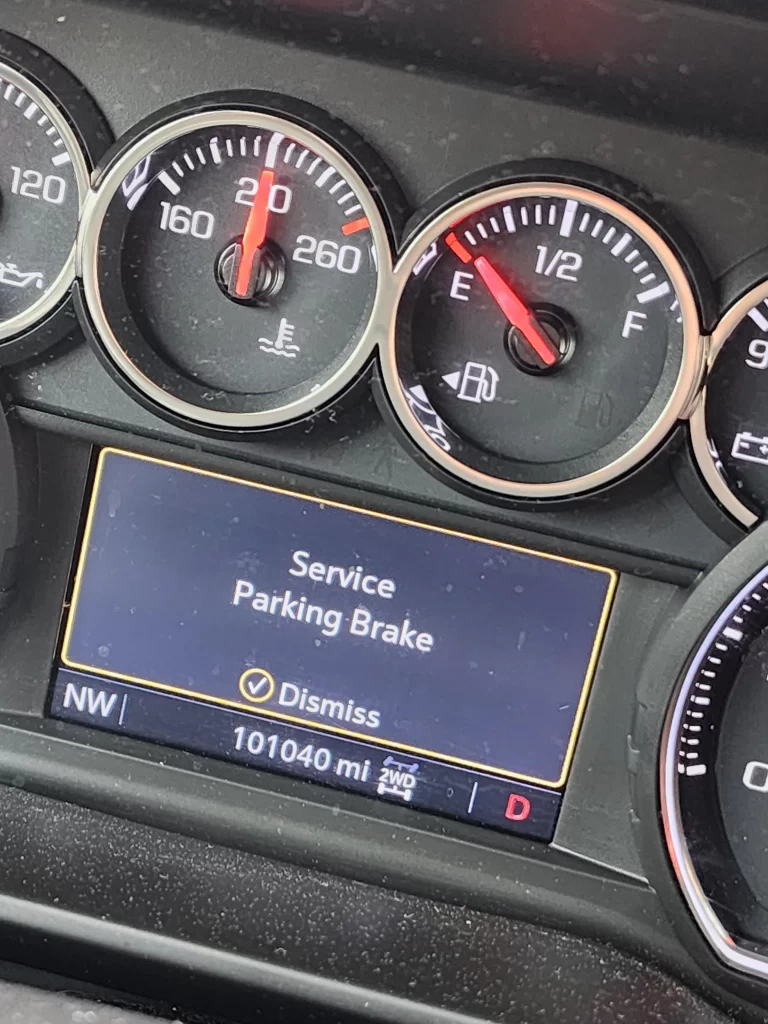

DIC message	Accompanies EPB faults on the Driver Information Center

If the amber light is on before you start, diagnose that first. Our GMC Acadia brake warning light guide covers the other brake indicators.

Method 1: Scan Tool (Recommended)

A scan tool with bidirectional brake module functions is the most reliable route, and it is how dealers and most independent shops do it.

1. Park on level ground, set the transmission in Park and chock the front wheels.
2. Connect the scan tool to the OBD-II port under the dash and turn the ignition on with the engine off.
3. Open the electronic brake or EPB module and find the service function. The label varies by tool: "Service Mode," "Maintenance Mode," "Release for Brake Service" or similar.
4. Run the function and wait for the tool to report that the actuators are retracted. You will usually hear the motors run on both rear calipers.
5. Leave the ignition in the state the tool asks for and do the brake job.
6. When the pads are installed, use the tool's exit or "apply/calibrate" function to bring the actuators back into position.

Basic code readers cannot do this. Check that your tool lists EPB service support for GM vehicles of your model year before buying it.

Method 2: The Switch Sequence (No Scan Tool)

This sequence circulates widely for GM vehicles with electric parking brakes:

1. Ignition ON/RUN, engine off.
2. Transmission in Park.
3. Press and hold the brake pedal, and keep holding it.
4. Press and hold the EPB switch for about 5 seconds, until the parking brake light flashes.
5. Release the switch, then immediately press and release it once more.
6. Release the brake pedal.

Treat this with caution. It is not in the Acadia owner's manual, and the wording usually attached to it ("releases tension in the parking brake cable") describes GM systems that use a cable-pulling motor, not the caliper-mounted actuators on the Acadia. Owners report mixed results on 2017+ Acadias. If the light does not respond as described or the pistons still will not move with light pressure, stop and use a scan tool. Do not try to force the pistons back.

Doing the Rear Brake Job in Service Mode

With the actuators retracted, the job is close to a standard rear disc brake service:

• Compress the pistons slowly and squarely with a caliper piston tool. Avoid pliers or anything that can tear the dust boot.
• Replace worn hardware. Sticking slide pins or tired abutment clips keep new pads from releasing cleanly.
• Clean and lubricate the slide pins and pad contact points with a brake-specific lubricant, keeping it off the friction surfaces.
• Check the rotors. Measure thickness against the minimum stamped on the rotor and look for scoring, heavy rust or a lip. Replace or machine as needed. See our notes on rotors for the Acadia and Acadia brake pads.
• Watch the fluid level. Pushing pistons back raises the reservoir level. Our Acadia brake fluid guide covers the correct fluid type.

Get torque values for the caliper bracket and caliper bolts from GM service information for your VIN rather than from a generic chart.

Exiting Service Mode and Checking the EPB

Do not drive with the EPB still in service mode.

1. If you used a scan tool, run its exit or apply/calibration function.
2. If you used the switch method, cycle the ignition off and back on, then apply and release the EPB with the switch. The actuators should run and reset.
3. Pump the brake pedal several times to bring the service pistons out against the new pads before moving the vehicle.
4. Apply the EPB and confirm the red light comes on steady; release it and confirm the light goes out.
5. Make sure the amber service parking brake light is off and no DIC message is showing.

If the red light keeps flashing or the amber light stays on after these steps, the system needs diagnosis. The owner's manual says to see a dealer in that case.

Troubleshooting

• Nothing happens when you press the switch: check battery voltage first. The manual states the EPB cannot be applied or released without sufficient power. A battery charger on a maintainer setting helps during a long job. Our Acadia battery location guide shows where to connect.
• Actuator retracted on one side only: check the connector at that caliper for corrosion or damage before assuming the motor has failed.
• Amber light after the job: a connector left unplugged or a calibration that did not complete is the common cause. A scan tool will show stored codes.
• Fuse checks: the EPB circuit has its own fuse. Find it using the fuse block chart in your owner's manual rather than relying on a position listed online.

Frequently Asked Questions

Does the 2019 GMC Acadia need a scan tool to change the rear brakes?

A scan tool that supports GM EPB service functions is the most reliable way to retract the rear actuators. A switch-and-pedal sequence is shared online, but it is not in the owner's manual and does not work on every 2017-2023 Acadia.

Is the service mode the same on the 2018 and 2019 Acadia?

Both are second-generation Acadias with the same kind of electric parking brake, so the scan tool approach is the same. Confirm the exact function name in your scan tool's menu for your model year.

Do 2016 and older Acadias have a service mode?

No. The 2007-2016 Acadia uses a foot-operated parking brake, so there is no electronic actuator to retract.

How do I get the Acadia out of parking brake service mode?

Use the scan tool's exit or apply function, or cycle the ignition and apply and release the EPB with the switch. Afterwards, confirm the red light comes on steady when applied and the amber service light is off.

Can I just push the rear pistons back with a C-clamp?

Not while the electric actuator is engaged. The actuator holds the mechanism behind the piston, and forcing it can damage the actuator or caliper. Retract it first with service mode.
